Sagittaria (Sagittaria platyphylla)

Also known as: arrowhead

Sagittaria is an aquatic weed in New South Wales, capable of aggressive growth and rapid spread.

Profile

How does this weed affect you?

Sagittaria (Sagittaria platyphylla, previously S. graminea) is an aquatic weed in New South Wales capable of aggressive growth and rapid spread. It can block irrigation channels, impede water flows and choke natural watercourses and wetlands.

In natural systems the vigorous, choking habits of sagittaria threaten native aquatic flora and fauna. Dense infestations restrict water flow and can substantially alter the flow regime of catchments and waterways affecting biodiversity and stream health. In irrigation systems both species are capable of reducing flow and effectiveness of water delivery. The plant biomass fills the channel bed reducing the volume available for water storage and trapping silt, gradually reducing the capacity of the channel. Infestations also have detrimental impacts on recreational activities such as fishing, boating and swimming, and reduce visual amenity of waterways.

Where is it found?

Sagittaria is native to North America and was introduced to many continents as an ornamental plant. It was first identified in Australia in 1959 near Brisbane, and then in Victoria in 1962. During the 1980s sagittaria’s distribution and density spread rapidly, and it is now widely dispersed in southern NSW, particularly in the Murray Irrigation District and is common in waterways around Sydney and Newcastle. It also occurs in waterways on the mid north and far north coasts and there is an isolated infestation in the northern inland region near Bingara. Recently two new infestations were recorded at Western Plains Zoo at Dubbo and another at Bega on the south coast. At present it is not widespread in other catchments, however it has the potential to spread and become extremely problematic.

Maps and records

• Recorded presence of Sagittaria during property inspections (Map: Biosecurity Information System - Weeds, 2017-2022)
  These records are made by authorised officers during property inspections under the Biosecurity Act 2015. Officers record the presence of priority weeds in their council area and provide this to the NSW Department of Primary Industries. Records reflect the presence of the weed on the date of inspection.


• Estimated distribution of Sagittaria in NSW (Map: NSW Noxious Weed Local Control Authorities, 2010)
  Map shows weed distribution and density estimated by local council weeds officers in 2010.

How does it spread?

Sagittaria can reproduce via several methods. It is a prolific seeder, with each plant having the ability to produce hundreds of thousands of seeds. It can also reproduce vegetatively by stem or root fragments, and can reproduce from underground rhizomes and corms. These reproductive options allow both species to spread rapidly, survive adverse conditions and resume growth when conditions are more favourable.

Seed production occurs from September to May. Seed can either germinate immediately or remain dormant only germinating when conditions are favourable. Seed may be dispersed via animals such as stock and birds or by water currents.

Seed can float for up 3 weeks before sinking. This ability aids in dispersal. The stimulus for germination includes sufficient light and water absorption by the outer seed coat.

The corms produced by sagittaria are rounded fleshy organs that contain starch and form at the terminus of a rhizome. Corms can remain viable in the soil for many years. Observations from research suggest corms are produced in response to periods of stress such as the onset of winter, dry soils and herbicide application. However, corms can be observed in most infestations. The production of corms allows for rapid regeneration of sagittaria following periods of stress, rather than having to recruit from seed. Corms and rhizomes are dormant through winter and regenerate in spring.

After seeds germinate plants grow into grass-like seedlings which can mature into any of the morphological forms depending on conditions.

Sagittaria germinates from late winter to spring. If an emergent form develops, flowers appear soon after establishment and can continue until colder weather affects growth (around May or June).

What does it look like?

Sagittaria is an emergent aquatic plant that belong to the Alismataceae family. Other similar-looking species in this family include arrowhead (Sagittaria montevidensis), alisma (Alisma lanceolatum), water plantain (Alisma plantago-aquatica) and star fruit (Damasonium minus). Table 1 summarises the differences between sagittaria, arrowhead and these similar-looking species.

Sagittaria is a perennial herb and can grow up to 150 cm tall.

Leaves and stems

Sagittaria has oval/linear shaped leaf blades with pointed tips, up to 25 cm long and 10 cm wide at the top of each stem (leaf stalk). It also has long narrow strap-like submerged leaves up to 50 cm long. Sagittaria stems are triangular in cross-section.

Flowers

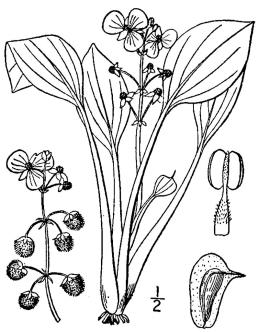

Sagittaria flowers appear in whorls or coils. Male flowers are 3 cm across with three white petals and yellow centres. Female flowers have no petals, resembling flattened green berries. Flowers appear below the height of the leaves during spring and autumn.

Fruit/seeds

Sagittaria seeds occur in clusters, consisting of flattened and winged segments, 0.15-0.3 cm long with 1 seed in each segment.

Morphological forms

Sagittaria has three morphological growth forms: submerged rosette, broad-leaved emergent and narrow-leaved emergent. These forms play an important role in the life cycle allowing the species to adapt to varying environmental conditions.

Submerged rosette form of sagittaria

The submerged rosette form develops following germination and can persist for several years without producing erect emergent stems. The emergent form develops when conditions are suitable. The rosette form does not produce flowers or seeds but can produce rhizomes and corms. This is one of the keys to the plant being able to survive and perpetuate without producing emergent stems.

The rosette form is commonly found in deeper water where conditions are unsuitable for the emergent forms. It can also be found interspersed with the emergent forms in dense stands.

Broad-leaved emergent form of sagittaria

Rosettes grow into emergent plants if water height is approximately less than one metre. This may be due to depth-related factors such as light reduction in deeper water which prevents emergent forms developing.

The broad-leaved emergent form arises from an energy-rich rhizome system. It tends to occur in slow-moving parts of channels and streams, along river banks and at the extremities of infestations. Infestations in drains tend to be established from seed, rather than from existing plants. The warm, shallow and slow flowing water in drains favours the settling and germination of seed and the growth of healthy, broad-leaved plants.

Narrow-leaved emergent form of sagittaria

The third form of sagittaria is an emergent form with narrow leaves and an almost grass-like appearance. Compared to the broad-leaved form, these leaves give plants an ‘unhealthy’ appearance, and are thought to arise from depleted rhizomes.

When broad-leaved plants are damaged by flooding, herbicide application or grazing they will re-emerge as the narrow-leaved form. The narrow leaves supply energy to the rhizome through photosynthesis until the rhizome is healthy enough to produce new broad-leaved plants.

Table 1. Distinguishing features of sagittaria, arrowhead and similar-looking species found in NSW.

	SAGITTARIA S. platyphylla	ARROWHEAD S. montevidensis	ALISMA Alisma lanceolatum	WATER PLANTAIN Alisma plantago-aquatica	STAR FRUIT Damasonium minus
Origin	North America	America	Europe, west Asia, north Africa	Native to Australia	Native to Australia
Height	150 cm	100 cm	100 cm	150 cm	100 cm
Distinguishing features	Larger flowers (3 cm wide), oval-shaped leaves with only one main mid-vein	Large flowers (2.5 cm wide), strongly arrow-shaped adult leaves	Narrow leaves and large inflorescence held above the height of the leaves, small flowers (10 mm wide)	Small flowers (10 mm wide), oval-shaped leaves with many veins	Small flowers (6 mm wide), large inflorescence held above leaves
Leaves	Emergent leaves: oval-shaped with a pointed tip; to 25 cm long and 10 cm wide. Submerged leaves: long, narrow strap-like without expanded blades; to 50 cm long	Emergent leaves: arrow-shaped; prominently veined; to 25 cm long and 20 cm wide; lobes to 15 cm long and 10 cm wide. Submerged leaves: strap-like, linear	Spear-shaped; to 20 cm long and 4 cm wide; up to 7 prominent veins connected by several transverse veins. Submerged leaves: strap-like	Oval-shaped; 10-25 cm long and 7-10 cm wide; usually 7 prominent parallel veins connected by numerous transverse veins	Oval-shaped; 5-10 cm long and 1.5-4 cm wide; 3-5 parallel veins connected by numerous finer transverse veins
Stems (leaf stalk)	Triangular in cross-section; to 80 cm long.	Round in cross-section	To 80 cm long; flattened on one side with small wings at the base	To 80 cm long, flattened on one side with small wings at the base	To 30 cm long
Flowers	Appear in whorls or coils. Male flowers: 3 white petals with yellow centre; 3 cm wide. Female: no petals; look like flattened green berries. Flowers appear below the height of the leaves during spring to autumn	Female flowers carried in groups of 3 ringing the stem, with male flowers in groups above them; all borne on a leafless stem. Petals are white. Flowers are 2.5 cm wide	Inflorescence (flower cluster) to 60 cm long and 40 cm wide. Flowers 10 mm diameter. Sepals to 2 mm long. Petals 4 mm long, white or pink. Flowers in summer	Wiry inflorescence (flower cluster), to 60 cm long and 40 cm wide. Flowers 10 mm diameter. Sepals to 2 mm long. Petals 4 mm long, pale pink or almost white. Flowers on long stems above height of leaves	Inflorescence (flower cluster) to 50 cm long. Flowers 6 mm in diameter. Sepals 1 mm long, green. Petals ovate 6 mm long, white or pink. Flowers early summer
Fruit/Seed	Cluster 0.5-1.0 cm across; 1 seeded segment flattened and winged 1.5-3 mm long. Each plant can produce up to 20,000 seeds	Clustered; laterally flattened, 1.5-3 mm long, beaked at the apex with dorsal wings	Triangular; 2-2.5 mm long. Each fruit contains 1 seed	2-2.5 mm long, falling singly	Star-shapedÈ

What type of environment does it grow in?

Sagittaria grows in irrigation channels, drains, creeks, rivers, lagoons, dams and wetlands. Establishment is favoured by slow moving or static shallow water. Large channels and waterways with high flow rates, deeper water levels and little seasonal water level fluctuation are less at risk of sagittaria establishment.

Sagittaria will establish easily along the edges of irrigation channels (berms). The water depth and flow rates allow seed to settle and plants to establish. The smaller channels provide ideal conditions for infestation, as the water is generally warmer, shallower and slower moving. Fluctuations in depth allow plants to establish while the water is shallow. It prefers to grow where silt sediment accumulates such as in smaller channels and on the inside bends of larger channels. Once it is established in these areas further sediment is trapped, increasing the surface area that can be colonised by the plant’s rhizomes.

Acknowledgements

Authors: Lauren Forrest, Melissa Kahler and Elissa van Oosterhout.
Technical reviewers: John Fowler, Birgitte Verbeek, Stephen Johnson

References

Aquatic Plant Services (2004), The Biology and Control of Arrowhead, Goulburn-Murray Water.

Chapman, M. & Dore, D. (2006). Arrowhead Strategic Plan Final Draft, Gommalibee, Victoria: Rural Plan Pty Ltd.

Crocker, W. (1907), “Germination of seeds of water plants”, Botanical Gazette, Vol. 44, No. 5, pp. 375-380.

Department of Primary Industries Victoria, (2009), Invasiveness assessment - Giant Arrowhead (Sagittaria montevidensis) in Victoria, August 2010 http://www.land.vic.gov.au

Eastern & Western Riverina Noxious Weeds Advisory Group. (2004). Regional Weed Management Plan: Riverina Sagittaria Management Plan

Flower, G. (2003). The Biology and Control of Arrowhead (Sagittaria graminea). River & Catchment Health: Presenting current research in the Goulburn Broken Catchment.

Goulburn-Murray Water. (2001). Arrowhead Sagittaria graminea factsheet , Aquatic Plant Services.

Gunasekera, L. & Krake, K. (2001). Arrowhead – a serious aquatic weed in northern Victoria. In Victorian Landcare and Catchment Management, 19, 7.

Rataj, K. (1972). “Revision of the genus Sagittaria. Part I. (Old World Species)”, Annotationes Zoologicae et Botanicae, 76, pp. 1-36.

Turner, C.E. (2001). “Reproductive Biology of Sagittaria monetividensis Cham. & Schlecht. spp. Calycina (Engelm.) Bogin (Alismataceae)”, Unpublished doctoral dissertation, University of California, Berkeley.

More information

back to top

Control

Physical removal

Physical removal involves excavation with machinery or manual digging by hand. Physical removal allows water movement to be restored quickly in waterways blocked by infestations. It is also a technique used in areas where herbicide use is inappropriate, such as near sensitive waterways or irrigation channels under continual use.

Appropriate hygiene and containment measures must be applied during manual removal to ensure plant fragments do not float downstream and establish elsewhere. It is also important when excavating to ensure the root and rhizome fragments in the soil are removed to avoid future regeneration.

Excavation can be labour intensive and costly and is generally avoided in irrigation channels where it interferes with the engineering structure of the drain. However in new and isolated infestations where eradication is possible mechanical and manual removal should be considered. By removing all viable plant material and following up with removal of regrowth, eradication is possible. Physical removal can be particularly effective to control isolated or new infestations.

Herbicide options

See Using herbicides for more information.

---

PERMIT 89861 Expires 31/01/2023
Glyphosate 360 g/L (Only products registered for aquatic use)
Rate: 10 L product/100 L water
Comments: Spot spray. Only for use in Aquatic areas (Irrigation and drainage channels) within the Murrumbidgee Irrigation Limited areas of responsibility. DO NOT exceed a maximum of 40 L product/ha. See permit for other critical comments.
Withholding period: Nil.
Herbicide group: M, Inhibitors of EPSP synthase
Resistance risk: Moderate

---

Flumioxazin 15 grams /tablet (Clipper herbicide®)
Rate: 1 tablet for every 37.5 cubic metres of water to achieve 400 parts per billion.
Comments: For use on dense or established weed populations in enclosed water bodies, deeper than 0.5 m and larger than 37.5 cubic metres, or margins of larger, still water bodies. Throw tablets directly into the water to achieve uniform distribution of the herbicide. At least 50% of the weed biomass must be below the water surface. See label for further instructions and restrictions.
Withholding period: 14 days before using treated water to irrigate food crops. See label for withholding periods for other uses of treated water.
Herbicide group: G, Inhibitors of protoporphyrinogen oxidase (PPOs)
Resistance risk: Moderate

---

Flumioxazin 15 grams /tablet (Clipper herbicide®)
Rate: Inject solution into water body. 1 tablet per 37.5 cubic metres. Each tablet dissolved in at least 20L of water + 0.5 - 1.0% adjuvant/surfactant
Comments: For use on dense or established weeds in water bodies less than 0.5 m deep or with a volume less than 37.5 cubic metres. Dissolve tablets in water (at least 20L per tablet) mix thoroughly and then inject the solution directly into the water body.
Withholding period: 14 days before using treated water to irrigate food crops. See label for withholding periods for other uses of treated water.
Herbicide group: G, Inhibitors of protoporphyrinogen oxidase (PPOs)
Resistance risk: Moderate

---

back to top

Biosecurity duty

The content provided here is for information purposes only and is taken from the Biosecurity Act 2015 and its subordinate legislation, and the Regional Strategic Weed Management Plans (published by each Local Land Services region in NSW). It describes the state and regional priorities for weeds in New South Wales, Australia.

Area	Duty
All of NSW	General Biosecurity Duty All plants are regulated with a general biosecurity duty to prevent, eliminate or minimise any biosecurity risk they may pose. Any person who deals with any plant, who knows (or ought to know) of any biosecurity risk, has a duty to ensure the risk is prevented, eliminated or minimised, so far as is reasonably practicable.
All of NSW	Prohibition on certain dealings Must not be imported into the state, sold, bartered, exchanged or offered for sale.
Central Tablelands	Regional Recommended Measure* (for Regional Priority - Prevention) Land managers should mitigate the risk of new weeds being introduced to their land. The plant should be eradicated from the land and the land kept free of the plant. The plant should not be bought, sold, grown, carried or released into the environment. Notify local control authority if found.
Central West	Regional Recommended Measure* (for Regional Priority - Prevention) Land managers should mitigate the risk of new weeds being introduced to their land. The plant should be eradicated from the land and the land kept free of the plant. The plant should not be bought, sold, grown, carried or released into the environment. Notify local control authority if found. This Regional Recommended Measure applies to all species of Sagittaria
Hunter	Regional Recommended Measure* (for Regional Priority - Asset Protection) Land managers should mitigate the risk of new weeds being introduced to their land. Land managers should mitigate spread from their land. The plant should not be bought, sold, grown, carried or released into the environment. Land managers reduce impacts from the plant on priority assets.
Murray	Regional Recommended Measure* (for Regional Priority - Containment) Land managers should mitigate the risk of new weeds being introduced to their land. Plant should not be bought, sold, grown, carried or released into the environment. Notify local control authority if found.
North West	Regional Recommended Measure* (for Regional Priority - Asset Protection) Land managers should mitigate the risk of new weeds being introduced to their land. The plant should be eradicated from the land and the land kept free of the plant. Plant should not be bought, sold, grown, carried or released into the environment.
Riverina	Regional Recommended Measure* (for Regional Priority - Eradication) Land managers should mitigate the risk of the plant being introduced to their land. The plant should be eradicated from the land and the land kept free of the plant.
Western	Regional Recommended Measure* (for Regional Priority - Prevention) Land managers should mitigate the risk of new weeds being introduced to their land. The plant should be eradicated from the land and the land kept free of the plant. The plant should not be bought, sold, grown, carried or released into the environment. Notify local control authority if found.
	*To see the Regional Strategic Weeds Management Plans containing demonstrated outcomes that fulfil the general biosecurity duty for this weed click here

back to top

Reviewed 2021
